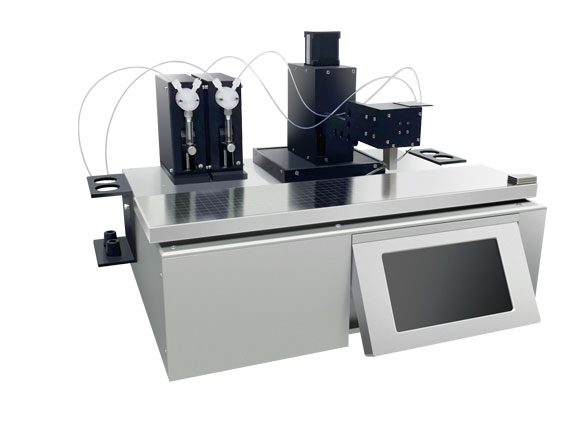

HMY300 3D Platform Dispenser is mainly used in small-scale production and research and development processes. The polyester hollow fiber tube used for dispensing has good strength and flexibility. When dispensing, it can not only ensure the quality of the line, but also ensure that the membrane surface structure is not damaged.
| Product model | HMY300 |
| Input power | ～220V±22V 50Hz～60Hz 2A |
| Power | 200W |
| Overall dimension | 568mm×378mm×349mm |
| Platform area | 112mm |
| Working area | 0~320mm |
| Platform speed | 50～125mm/s |
| Maximum storage program | 10 |
| Dispensing solution concentration | 0.10～2.00 ul/cm |
| Minimum dispensing space | 3mm |
Reagent residual volume | Approach to 0 |
| Number of standard pump | 2 |
| Number of maximum pump | 4 |
| Syringe capacity (Standard configuration) | 500ul/1000ul |
